Image circle φ20 (Compatible with 1.1-inch sensor size)
【CMX10 series】Imaging lens magnification : 1.0X
| Main part number | CMX10R | ||
| Type | Right-angle objective lens | ||
| Model No. | CMX10R-A | CMX10R-B | CMX10R-C |
| Objective lens mounting thread diameter | M20.32×0.706 | M26×0.706 | M25×0.75 |

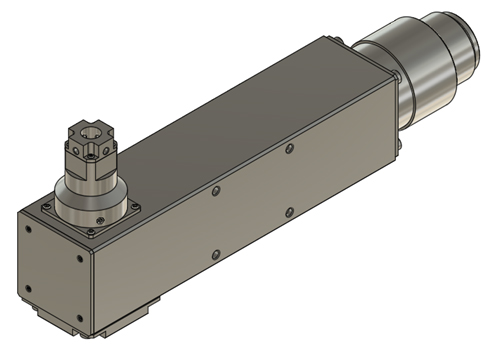

| Exterior design |  | ||

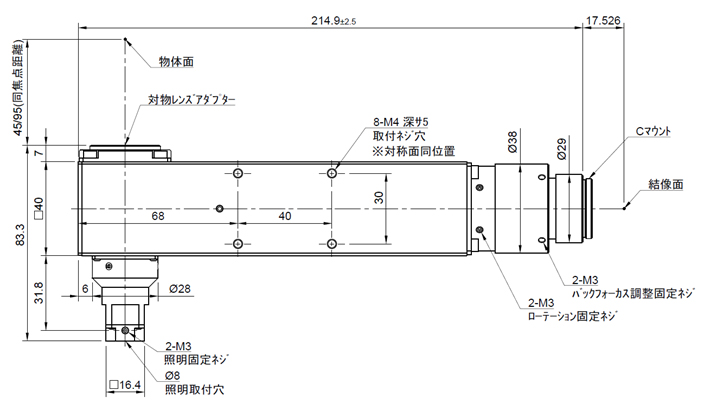

| External dimensions |  | ||
*Please note that the product design is subject to change without prior notice.
