Image circle φ20 (Compatible with 1.1-inch sensor size)
【CMX05 series】 Imaging lens magnification : 0.5X
| Main part number | CMX05 | ||
| Type | Standard | ||
| Model No. | CMX05-A | CMX05-B | CMX05-C |
| Objective lens mounting thread diameter | M20.32×0.706 | M26×0.706 | M25×0.75 |

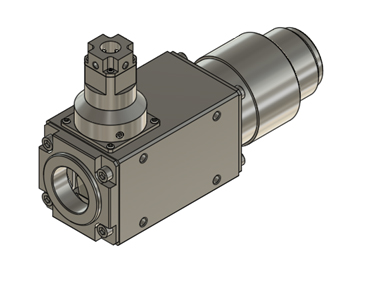

| Exterior design |  | ||

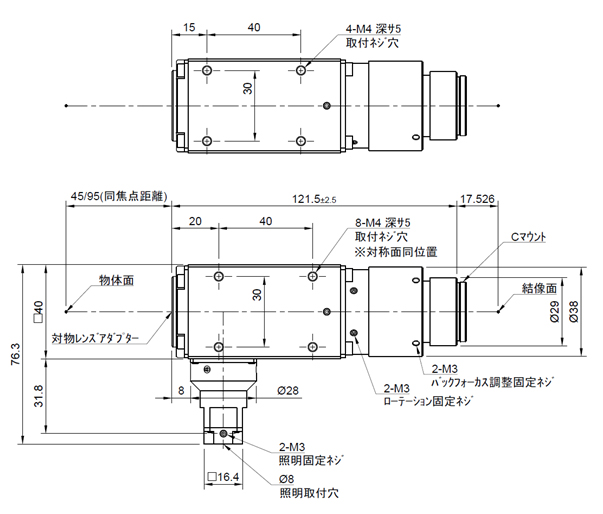

| External dimensions |  | ||
*Please note that the product design is subject to change without prior notice.
